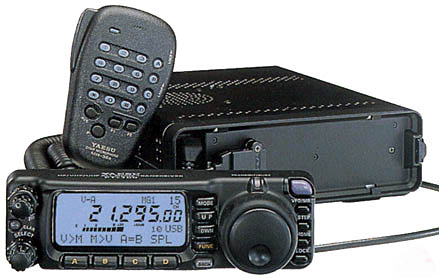

Yaesu FT-100 / FT-100D
|
|
Summary: Miniature mobile transceiver that provides coverage of the 160 to 6 meter bands plus the 144 MHz and 430 MHz bands. The ultra-compact FT-100D combines a detachable front panel. Features such as DSP provide performance identical to many base stations.Receive coverage: 0.1-76, 108-174 and 420-512 MHz. Controls include: IF shift, IF NB, dual VFO's, keyer, 300 memories and CTCSS, DSP bandpass filter, notch filter, noise reduction and equalizer. Download manual (PDF) |
Specifications:
GENERAL
|
|
|
Frequency Range: Receive:
|
100 kHz - 961 MHz (Cellular blocked) |
|
Transmit:
|
160 - 6 Meters |
|
0
|
2 Meters |
|
0
|
70 Centimeters (Amateur bands only) |
|
0
|
5167.5 kHz: Alaska Emergency Frequency |
|
0
|
(U.S.A. version only) |
|
Emission Modes:
|
A1 (CW), A3 (AM), A3J (LSB/USB), |
|
0
|
F1 (9600 bps Packet), F2 (1200 bps Packet), F3 (FM) |
|
Synthesizer Steps (Min.):
|
1.25 Hz (CW/SSB), 100 Hz (AM), |
|
0
|
100 Hz (FM), 1 kHz (FM) |
|
Antenna Impedance:
|
50 Ohm, Unbalanced |
|
Operating Temp. Range:
|
-10 °C to +60 °C (14 F to 122 F) |
|
Frequency Stability:
|
Better than a1 ppm (-10 °C to +50 °C) (SSB/CW/AM) |
|
0
|
Better than a(1 kHz +1 ppm) (FM) |
|
Power Requirements:
|
DC 13.8V a10 %, Negative Ground |
|
Current Consumption:
|
Receive (Squelched) : 1.2A, |
|
0
|
Receive (Max. Audio) : 1.6A |
|
0
|
Transmit : 22A (@ 100W RF output) |
|
Case Size:
|
6.3" (W) x 2.2" (H) x 8.0" (D) (160 x 54 x 205 mm) |
|
Weight:
|
6.6 lb. (3 kg.) |
|
0
|
|
|
TRANSMITTER
|
|
|
Power Output:
|
160 - 6m : 100 Watts (25 Watts AM carrier) |
|
0
|
2m : 50 Watts (12.5 Watts AM carrier) |
|
0
|
70cm : 20 Watts (5 Watts AM carrier) |
|
Modulation Types : SSB:
|
Balanced Modulator |
|
FM:
|
Variable Reactance |
|
AM:
|
Early Stage (Low Level) |
|
FM Maximum Deviation:
|
a5 kHz (a2.5 kHz on FM-N) |
|
Spurious Radiation : Harmonics:
|
At least 40 dB down (1.8 - 29.7 MHz) |
|
At least 60 dB down (50/144/430 MHz)
|
0 |
|
Non-harmonic:
|
At least 50 dB down (1.8 - 29.7 MHz) |
|
0
|
At least 60 dB down (50/144/430 MHz) |
|
Carrier Suppression:
|
At least 40 dB |
|
Opp. Sideband Suppression:
|
At least 50 dB |
|
SSB Frequency Response:
|
400 Hz - 2600 Hz (-6 dB) |
|
Microphone Impedance:
|
200 - 10 k Ohm (Supplied microphone: 2 k Ohm) |
| RECEIVER | |||
|
Sensitivity:
|
SSB/CW | AM-N | FM |
|
150 kHz - 250 kHz (IPO off):
|
5 uV | 40 uV | - |
|
250 kHz - 1.8 MHz (IPO off):
|
4 uV | 32 uV | - |
|
1.8 - 28 MHz (IPO off):
|
0.25 uV | 2 uV | - |
|
28 - 30 MHz:
|
0.25 uV | 2 uV | 0.50 uV |
|
50 - 54 MHz:
|
0.20 uV | 2 uV | 0.50 uV |
|
144/430 MHz:
|
0.125 uV | 2 uV | 0.20 uV |
| Above specifications are worst-case. | |||
| SSB/CW/AM-N figures are for 10 dB S/N, 12 dB SINAD on FM | |||
| Squelch Sensitivity : | SSB/CW/AM | FM |
| 1.8 - 28 MHz : | 2.5 uV | - |
| 28 - 30 MHz : | 2.5 uV | 0.32 uV |
| 50 - 54 MHz : | 1.12 uV | 0.20 uV |
| 144/430 MHz : | 0.8 uV | 0.16 uV |
| Intermediate Frequencies : | 0 |
| 1st IF : | 68.985 MHz (SSB/CW/FM/Digital) |
| 0 | 67.980 MHz (W-FM) |
| 2nd IF : | 11.705 MHz (SSB/CW/FM/Digital) |
| 0 | 10.700 MHz (W-FM) |
| 3rd IF : | 455 kHz(FM) |
| Image Rejection : | Better than 70 dB (1.8 - 30 MHz, 50 - 54 MHz) |
| 00 | Better than 60 dB (144 - 148 MHz, 430 - 450 MHz) |
| IF Rejection : | Better than 70 dB (1.8 - 30 MHz) |
| 0 | Better than 60 dB (50 - 54 MHz, 144 - 148 MHz, 430 - 450 MHz) |
| Selectivity (-6 / -60 dB) : | 0 |
| SSB/CW : | 2.2 kHz/5.2 kHz |
| CW : | 450 Hz/1.8 kHz |
| CW-N : | 250 Hz/1.2 kHz (Optional XF-117CN installed) |
| AM : | 5.2 kHz/18 kHz (Optional XF-117A installed) |
| FM : | 15 kHz /25 kHz (-6 / -50 dB) |
| Audio Output : | At least 1.5 W into 8 Ohm @ 10% THD |
| Audio Output Impedance : | 4 Ohm - 8 Ohm |
