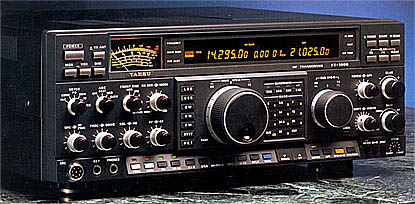

Yaesu FT-1000 / FT-1000D
|
|
Summary:
The FT-1000 project involves a wholly new approach to the
application of the latest digital and RF technologies to today's most
demanding needs of the HF bands.
Extensive surface-mount component technology allowed six
microprocessors and five Direct Digital Synthesizers to be harmoniously
integrated with a simple operator interface into a highly reliable
full-featured HF application. The quad conversion (triple for FM)
receiver covers 100 kHz to 30 MHz.
|
Specifications:
| GENERAL | |
|
RX Frequency Range:
|
100 kHz ~ 30 MHz |
|
TX Frequency ranges:
|
160 ~ 10m amateur bands only |
|
Freq. Accuracy:
|
<a5 ppm (except FM <a100 Hz) |
|
Freq. Stability:
|
<a2 ppm (0 °C ~ 50°C) (except FM <a200 Hz) |
|
0
|
<a0.5 ppm (-10°C ~ 60°C) w/TCXO-1 (FM <a150 Hz 0°C ~ 50°C) |
|
Emission Modes:
|
LSB, USB (J3E), CW (A1A), FSK (J1D, J2D), AM (A3E), FM (F3E) |
|
Basic Frequency Steps:
|
10 Hz for J3E, A1A and J1D |
|
0
|
100 Hz for AM and FMA3E, F3E and J2D |
|
Antenna
Impedance:
|
16.5 to 150 Ohm, 50 Ohm nominal |
|
0
|
|
|
Supply Voltage:
|
100, 110, 117, 200, 220 or 234 VAC, 50/60 Hz |
|
Power Consumption (approx.):
|
95 VA Receive, 1050 VA for 200 watts transmit |
|
Dimensions (WHD):
|
420 x 150 x 375 mm |
|
Weight (approx.):
|
51 lbs. (25.5 kg.) |
|
0
|
|
|
TRANSMITTER
|
|
|
Power Output:
|
adjustable up to 200 watts (50 watts AM Carrier) |
|
Duty
Cycle:
|
100% @ 100 watts, 50% @ 200 watts (FM & RTTY, 3-minute TX) |
|
Modulation Types:
|
SSB: Balanced, Filtered Carrier |
|
0
|
AM: Low level (early stage) |
|
0
|
FM: Variable Reactance |
|
0
|
FSK: Audio Frequency Shift Keying |
|
Maximum FM Deviation:
|
a2.5 kHz |
|
FSK Shift Frequencies:
|
170, 425 and 850 Hz |
|
Packet Shift Frequencies:
|
200, 1000 Hz |
|
Harmonic radiation:
|
at least 50dB below peak output |
|
SSB carrier suppression:
|
at least 40dB below peak output |
|
Undesired sideband suppression:
|
at least 50dB below peak output |
|
Audio response (SSB):
|
not more than -6dB from 400 to 2800 Hz |
|
3rd-order IMD:
|
-36 dB @ 150 watts PEP, -31 dB @ 200 watts PEP, or better |
|
Microphone impedance:
|
500 to 600 Ohm |
|
0
|
|
|
RECEIVER
|
|
|
Circuit type:
|
quad-conversion superheterodyne (triple conversion for FM) |
|
Intermediate Frequencies:
|
73.62 and 8.215 MHz and 455 and 100 kHz |
| Sensitivity (For 10 dB S/N): | ||||
| Frequency | 100 ~ 250 kHz | 250 ~ 500 kHz | 0.5 ~ 1.8 MHz | 1.8 ~ 30 MHz |
| 0 | ||||
| Mode | ||||
| SSB, CW (2.4 kHz) | 1.25 uV | 1 uV | 2 uV | 0.25 uV |
| AM (6 kHz) | 10 uV | 8 uV | 16 uV | 1 uV |
| 29 MHz FM (12 dB SINAD) | - | - | - | 0.5 uV |
| Selectivity (-6 / -60 dB): | |||
| Button | Modes | Min -6dB BW | Max -60 dB BW |
| 2.4 kHz | all except FM | 2.2 kHz | 3.8 kHz |
| 2.0 kHz | all exc. AM, FM | 1.8 kHz | 3.6 kHz |
| 500 Hz | CW, RTTY, Packet | 500 Hz | 1.2 kHz |
| 250 Hz | CW, RTTY | 240 Hz | 700 Hz |
| - | AM (Wide) | 6 kHz | 14 kHz |
| Sensitivity (For 10 dB S/N): | ||||
| Frequency | 100 ~ 250 kHz | 250 ~ 500 kHz | 0.5 ~ 1.8 MHz | 1.8 ~ 30 MHz |
| 0 | ||||
| Mode | ||||
| SSB, CW (2.4 kHz) | 1.25 uV | 1 uV | 2 uV | 0.25 uV |
| AM (6 kHz) | 10 uV | 8 uV | 16 uV | 1 uV |
| 29 MHz FM (12 dB SINAD) | - | - | - | 0.5 uV |
|
Dynamic Range:
|
108 dB (@ 50 kHz, 500 Hz BW, RF amp off) | |
|
Squelch sensitivity:
|
1.8 ~ 30 MHz: (CW, SSB, AM): <2.0uV | |
|
0
|
28 ~ 30 MHz: (FM): | <0.32uV |
|
IF rejection (1.8 ~ 30 MHz):
|
80 dB or better (Main RX) | |
|
Image rejection: (1.8 ~ 30 MHz):
|
80 dB or better (Main) | |
|
IF shift range:
|
a1.12 kHz | |
|
Max audio output:
|
2W into 4 Ohms with < 10% THD | |
|
Audio output impedance:
|
4 to 8 Ohm | |
