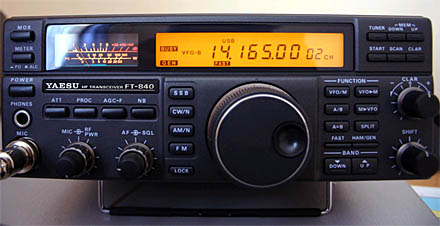

Yaesu FT-840
|
|
Summary: One of the last no-nonsense HF-tranceivers around and still for sale today. The FT-840 uses a die-cast RF power amp with thermally switched fan to ensure full power output (up to 100 watts). The digitally synthesized local signals ensure clean, low-noise transmitter output on all HF amateur bands. Other features include IF shift, reverse CW, dual VFOs, 100 memories, attenuator, noise blanker, meter, scan modes and speech processor.Download brochure (PDF) |
Specifications:
GENERAL
| |
|
Receiving Frequency Range:
|
100 kHz ~ 30 MHz |
|
Transmitting Frequency Range:
|
160 ~ 10 meter Amateur Bands |
|
Frequency Stability:
|
a10 ppm (or a500 Hz), |
|
0
|
from 0 ~ +40°C and a2 ppm (or a300 Hz FM*), |
|
0
|
from 0 ~ +50°C (with TCXO-4 option) |
|
Emission Modes:
|
USB, LSB(J3E), CW (A1A), AM (A3E), FM* (F3E) |
|
Frequency Tuning Steps:
|
10 Hz/100Hz (CW, SSB) |
|
0
|
100Hz/1kHz (AM, FM*) |
|
Antenna Impedance:
|
50 Ohm nominal |
|
Operating Temp. Range:
|
-10°C ~+50°C |
|
Supply Voltage:
|
13.5 VDC a10%, Negative Ground |
|
Power Consumption:
|
1.2 A RX (no signal) |
|
0
|
20 A TX (100 watts) |
|
Dimensions (WHD):
|
9.4 x 3.7 x 9.6 inches (238 x 93 x 243 mm) |
|
Weight Approx.:
|
9.9 Lbs. (4.5 kg) |
|
0
|
|
|
TRANSMITTER
| |
|
Power Output:
|
Adjustable to 100 Watts (25 Watts AM carrier) |
|
Modulation Types: SSB:
|
Balanced, filtered carrier |
|
AM:
|
Low-level (early stage) |
|
FM:
|
Variable Reactance |
|
Maximum FM Deviation:
|
a2.5 kHz |
|
Harmonic Radiation:
| > 50dB below peak output |
|
0
|
45 dB (10, 18 MHz) |
|
Spurious Radiation:
|
>40 dB below peak output |
|
SSB Carrier Suppression:
|
>40 dB below peak output |
|
Undesired Sideband Suppression:
|
At least 50 dB below peak output at 1.5 kHz modulation |
|
Audio Response (SSB):
|
not more than -6 dB from 400~2600 Hz |
|
3rd order IMD:
|
-25 dB @ 100 watts PEP, 14.2 MHz |
|
Microphone Impedance:
| to 600 Ohm |
|
0
|
|
|
RECEIVER
|
|
|
Circuit Type:
|
dual-conversion superheterodyne |
|
Intermediate Frequencies: 1st:
|
47.055 MHz |
|
2nd:
|
8.215 MHz |
|
3rd:
|
455 kHz (FM* with option) |
|
Sensitivity:
|
(for 10dB S/N, 0 dBu = 1uV FM* 12 dB SINAD) |
| Frequency -> | 150~250 kHz | 250~500 kHz | 0.5~1.8 MHz | 1.8~30 MHz |
| Mode (BW) | ||||
| SSB, CW (2.4 kHz) | < 5 uV | < 2 uV | < 1uV | < 0.25 uV |
| AM (6 kHz) | < 40 uV | < 16 uV | < 8 uV | < 1 uV |
| FM*(28-30 MHz) (8 kHz) | - | - | - | < 0.5 uV |
| Selectivity: (-6/-60 dB) ripple 3 dB or better | ||
| Modes | Minimum 6 dB BW | Maximum 60 dB BW |
| CW narrow (optional) | 500 Hz | 1.8 kHz |
| SSB, CW, AM narrow | 2.2 kHz | 5.0 kHz |
| AM-Wide (optional) | 6 kHz | 14 kHz (-50 dB) |
| FM* (optional) | 8 kHz | 19 kHz |
| Squelch Sensitivity: | |
|
1.8 ~ 30 MHz (CW, SSB, AM):
|
< 2.0 uV |
|
28 ~ 30 MHz (FM*):
|
< 0.32 uV |
|
Image Rejection (1.8 ~ 30 MHz):
|
70 dB or better |
|
IF Rejection (1.8 ~ 30 MHz):
|
60 dB or better |
|
IF Shift range:
|
a1.2 kHz |
|
Clarifier Tuning Range / Steps:
|
a1.25 kHz / 20 Hz |
|
0
|
a2.50 kHz / 10 Hz |
|
Maximum Audio Power Output:
|
At least 1.5W into 4 Ohm < 10% THD |
|
Audio Output Impedance:
|
4 to 8 Ohm |
